A beam is a structural element that primarily carries loads
by resisting bending. It is a horizontal or inclined structural member that
spans between two supports, transferring loads applied along its length to
these supports. Beams are commonly used in construction to support the weight
of floors, roofs, walls, and other building elements.
There are several types of loads that can act on a beam, and
these loads can be categorized into two main categories: concentrated loads and
distributed loads. Here are some common types of loads on a beam:
- Point
Load (Concentrated Load): This is a single, concentrated force applied
at a specific point along the length of the beam. For example, the weight
of a person standing on a floor beam would create a point load.
.jpg "Point Load (Concentrated Load)")
- Uniformly

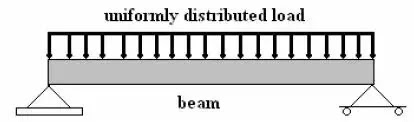

Distributed Load (UDL): This type of load is distributed evenly over a
portion or the entire length of the beam. An example of a UDL is the
weight of a uniformly constructed roof or a uniformly loaded floor.
.webp)
- Uniformly
Varying Load (UVL) or Triangular Load: This load varies linearly along
the length of the beam. It can be thought of as a gradually increasing or
decreasing load along the beam's span. An example might be snow
accumulation on a sloping roof.
%20or%20Triangular%20Load.jpg)
- Concentrated
Moment or Torque: This is a twisting or turning force applied at a
specific point on the beam. It can be caused by things like machinery or
wind forces.
- Temperature
Gradient: Temperature changes can cause thermal expansion or
contraction in a beam, resulting in internal stresses.
- Live
Load and Dead Load: In structural engineering, loads are often
categorized into "dead loads" (permanent or constant loads, such
as the weight of the structure itself) and "live loads"
(variable or transient loads, such as occupants, furniture, snow, or
wind). These loads are considered when designing beams to ensure they can
support both the structure's own weight and the additional loads imposed
on it during its lifespan.
- Dynamic
Loads: These are loads that vary with time, such as those caused by
moving vehicles or machinery.
- Shear
Load: Beams can experience shear loads that act parallel to the plane
of the beam. Shear loads can result from things like lateral forces or
unequal loading on the beam.
- Torsional
Load: Torsional loads create a twisting motion in the beam. These
loads can occur in situations where the beam is subjected to torsional
forces, such as a rotating shaft supported by a beam.
.jpg "Point Load (Concentrated Load)")
.webp)
%20or%20Triangular%20Load.jpg)
Designing beams to withstand these various types of loads is
a critical aspect of structural engineering. Engineers must calculate the
forces and moments that act on the beam and choose appropriate materials and
cross-sectional shapes to ensure the beam's strength and stability. The choice
of beam type (e.g., I-beam, H-beam, or box beam) and its dimensions also play a
crucial role in determining a beam's load-carrying capacity.
